Cómo crear Mapas bindable en Xamarin.Forms (Parte 3)

Cómo crear Mapas bindable en Xamarin.Forms (Parte 3)

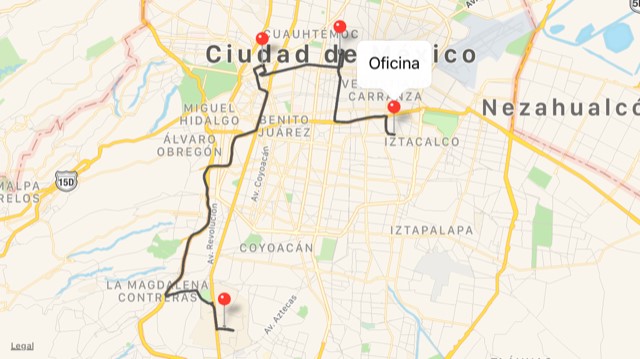

Si estas desarrollando una plicación Xamarin.Forms y vas a utilizar mapas Xamarin.Forms.Maps, te permite visualizar un mapa dentro de una aplicación Xamarin.Forms. En este artículo veremos cómo mostrar varias ubicaciones, mostrar la ubicación actual y como generar una ruta. Puedes leer la primera parte en Cómo crear Mapas bindable en Xamarin.Forms (Parte 1) y Cómo crear Mapas bindable en Xamarin.Forms (Parte 2)

Para que las rutas funcionen se debe crear una clase en los proyectos iOS y Android para que se muestren las líneas de la ruta.

Androide

[assembly: ExportRenderer(typeof(CustomMap), typeof(logistico.Droid.CustomMapRender))]

namespace logistico.Droid

{

    public class CustomMapRender: MapRenderer

    {

        List<Position> routeCoordinates;


        public CustomMapRender(Context context) : base(context)

        {

        }


        protected override void OnElementPropertyChanged(object sender, System.ComponentModel.PropertyChangedEventArgs e)

        {

            base.OnElementPropertyChanged(sender, e);

            if(sender !=null){

                var formsMap = (CustomMap)sender;

                routeCoordinates = formsMap.RouteCoordinates;

                Control.GetMapAsync(this);

            }

        }


        protected override void OnElementChanged(ElementChangedEventArgs<Map> e){

            base.OnElementChanged(e);

            if(e.OldElement!=null){

            }

            if(e.NewElement!=null){

                var formsMap = (CustomMap)e.NewElement;

                routeCoordinates = formsMap.RouteCoordinates;

                Control.GetMapAsync(this);

            }

        }

        protected override void OnMapReady(Android.Gms.Maps.GoogleMap map){

            base.OnMapReady(map);

            var polylineOptions = new PolylineOptions();

            polylineOptions.InvokeColor(0x66FF0000);

            foreach(var position in routeCoordinates){

                polylineOptions.Add(new LatLng(position.Latitude, position.Longitude));

            }

            NativeMap.AddPolyline(polylineOptions);

        }

    }

}

iOS

[assembly: ExportRenderer(typeof(CustomMap), typeof(logistico.iOS.CustomMapRender))]

namespace logistico.iOS

{

    public class CustomMapRender:MapRenderer

    {

        MKPolylineRenderer polylineRenderer;

        protected override void OnElementPropertyChanged(object sender, System.ComponentModel.PropertyChangedEventArgs e)

        {

            base.OnElementPropertyChanged(sender, e);

            if(sender!=null){

                var formsMap = (CustomMap)sender;

                var nativeMap = Control as MKMapView;

                nativeMap.OverlayRenderer = GetOverlayRenderer;

                if (formsMap.RouteCoordinates != null)

                {

                    CLLocationCoordinate2D[] coords = new CLLocationCoordinate2D[formsMap.RouteCoordinates.Count];

                    int index = 0;

                    foreach (var position in formsMap.RouteCoordinates)

                    {

                        coords[index] = new CLLocationCoordinate2D(position.Latitude, position.Longitude);

                        index++;

                    }

                    var routeOverlay = MKPolyline.FromCoordinates(coords);

                    nativeMap.AddOverlay(routeOverlay);

                }

            }

        }

        protected override void OnElementChanged(ElementChangedEventArgs<View> e)

        {

            base.OnElementChanged(e);

            if (e.OldElement != null)

            {

                var nativeMap = Control as MKMapView;

                if (nativeMap != null)

                {

                    nativeMap.RemoveOverlays(nativeMap.Overlays);

                    nativeMap.OverlayRenderer = null;

                    polylineRenderer = null;

                }

            }

            if (e.NewElement != null)

            {

                var formsMap = (CustomMap)e.NewElement;

                var nativeMap = Control as MKMapView;

                nativeMap.OverlayRenderer = GetOverlayRenderer;

                if(formsMap.RouteCoordinates!=null){

                    CLLocationCoordinate2D[] coords = new CLLocationCoordinate2D[formsMap.RouteCoordinates.Count];

                    int index = 0;

                    foreach (var position in formsMap.RouteCoordinates)

                    {

                        coords[index] = new CLLocationCoordinate2D(position.Latitude, position.Longitude);

                        index++;

                    }

                    var routeOverlay = MKPolyline.FromCoordinates(coords);

                    nativeMap.AddOverlay(routeOverlay);

                }

            }

        }

        MKOverlayRenderer GetOverlayRenderer(MKMapView mapView, IMKOverlay overlayWrapper)

        {

            if (polylineRenderer == null && !Equals(overlayWrapper, null))

            {

                var overlay = Runtime.GetNSObject(overlayWrapper.Handle) as IMKOverlay;

                polylineRenderer = new MKPolylineRenderer(overlay as MKPolyline)

                {

                    FillColor = UIColor.Blue,

                    StrokeColor = UIColor.DarkGray,

                    LineWidth = 3,

                    Alpha = 0.4f

                };

            }

            return polylineRenderer;

        }

    }

}

Implementación en Xamarin.Forms

Para implementarlo en Xaml es de la siguiente manera

<?xml version="1.0" encoding="utf-8"?>

<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"

    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"

    xmlns:local="clr-namespace:logistico"

    xmlns:cntrl="clr-namespace:logistico.Controls"

    x:Class="logistico.logisticoPage">

    <ContentPage.Content>

        <cntrl:CustomMap

        MapType="Street"

        WidthRequest="300"

        HeightRequest="300"

        MapPosition="{Binding MyPosition}"

        MapPins="{Binding AllPines}"

        RouteCoordinates="{Binding Ruta}"></cntrl:CustomMap>

    </ContentPage.Content>

</ContentPage>
